2023 Hurricane Ditcher 3-PT Swinger

3-PT Swinger

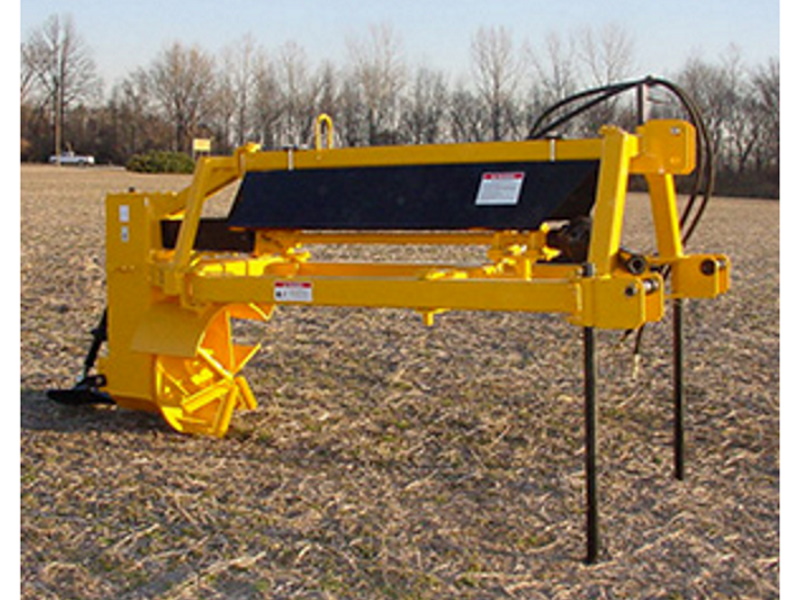

The Swinger is a 3-Point hitch mounted machine designed to be used as an offset ditcher behind either tractor tire or any position in between. An 8″ stroke cylinder and a 50° constant velocity (CV) joint allow the ditcher’s “swinging” action.

Features may include:

• Operates with 80-140 HP tractor
• Equipped with jack stand for easy hook-up and disconnection
• Can be operated behind either tractor tire or any position in between
• 8″ stroke cylinder hinges the machine from side to side
• Standard 50° constant velocity (CV) joint accommodates “swinging” action
• Cuts up to 10″ in a single pass with standard 20″ 6-paddle impeller
• Gearbox consists of large shafts, heavy-duty sprockets and bearings, and double 80 roller chain, all enclosed and running in an oil bath; use the external idler adjustment for chain tensioning to dramatically increase the life of your equipment
• Dragplate gives machine stability and prevents gouging; includes heavy-duty ratchet jack
• Soil is thrown out the left side of the ditcher and may be distributed over a 50′ area
