2021 Dragon Products, LTD 600 HP Well Servicing Pump

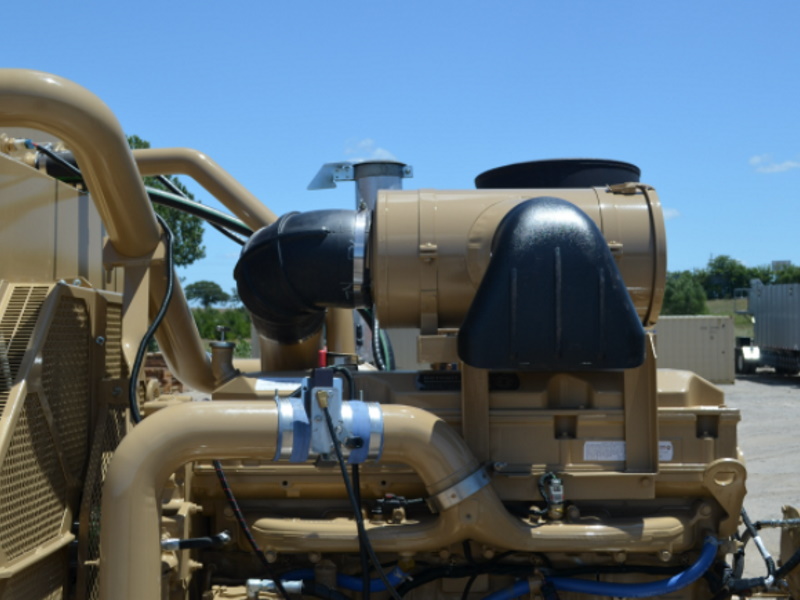

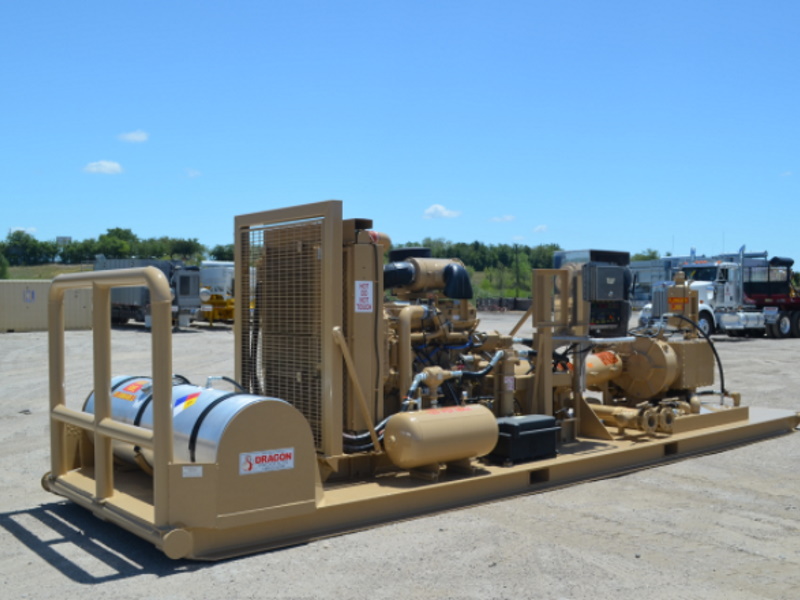

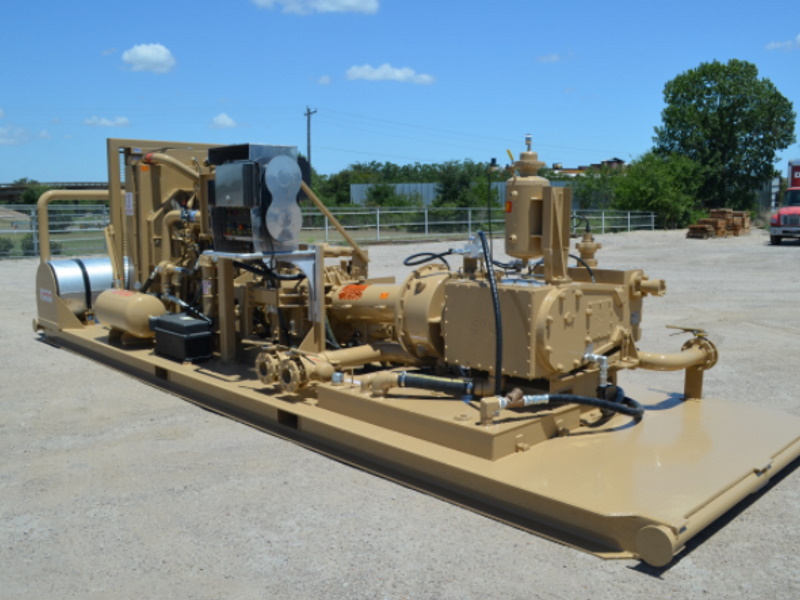

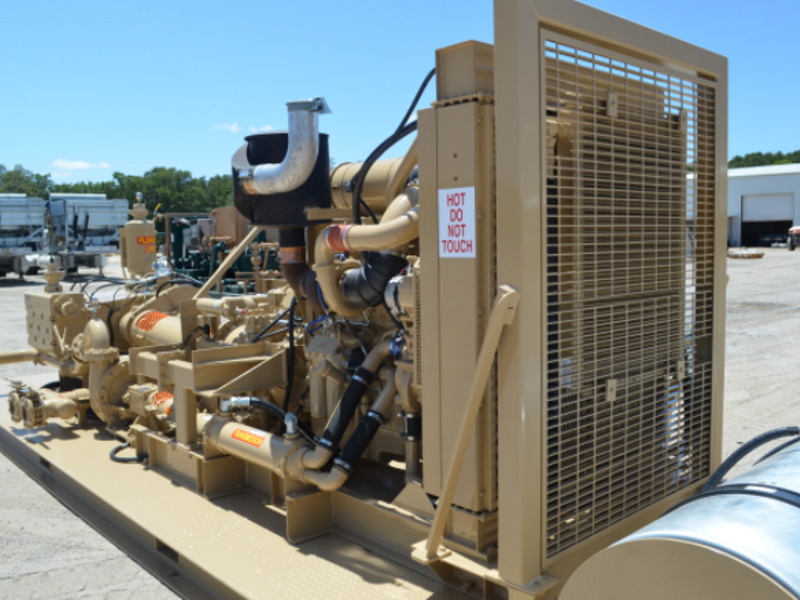

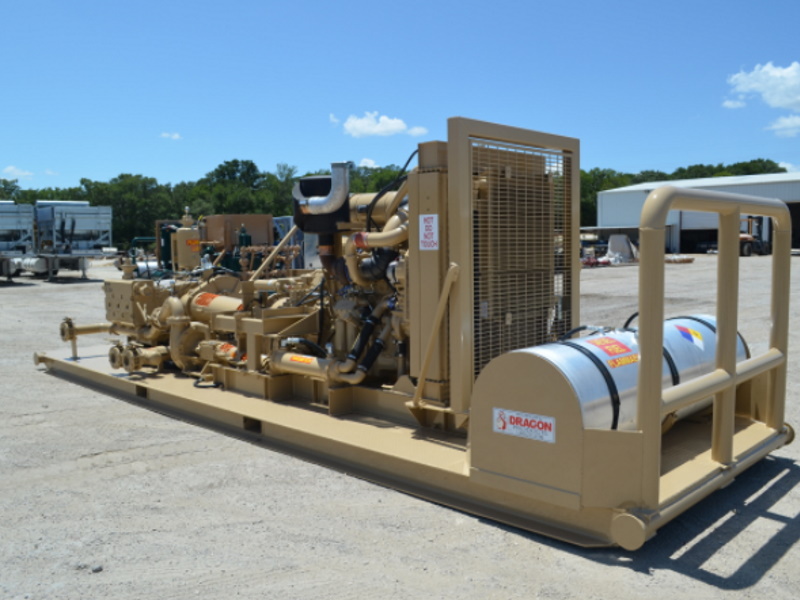

The 600 HP Well Service Pump Unit is a 630 horsepower triplex skid mounted pumping unit that is equipped to operate at the work site independent of other equipment. The unit is fabricated on three 10” x 35 lbs. I-Beam. Equipment consist of one diesel engine, automatic transmission, triplex pump, and a centrifugal pump.

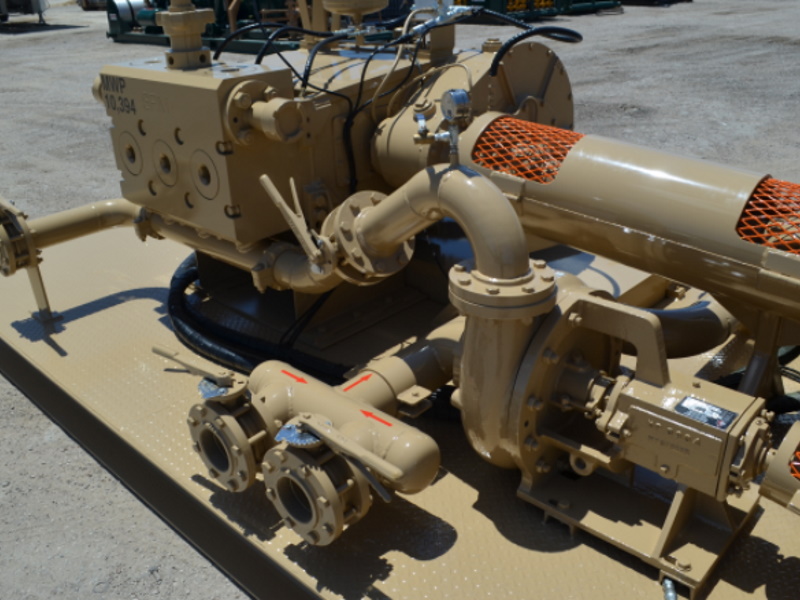

The main skid engine and automatic transmission drive the triplex pump. The triplex pump is configured to pump fluid to, release, or re-circulate fluid. A hydraulic drive is mounted on the transmission providing hydraulic power to operate the centrifugal pumps.

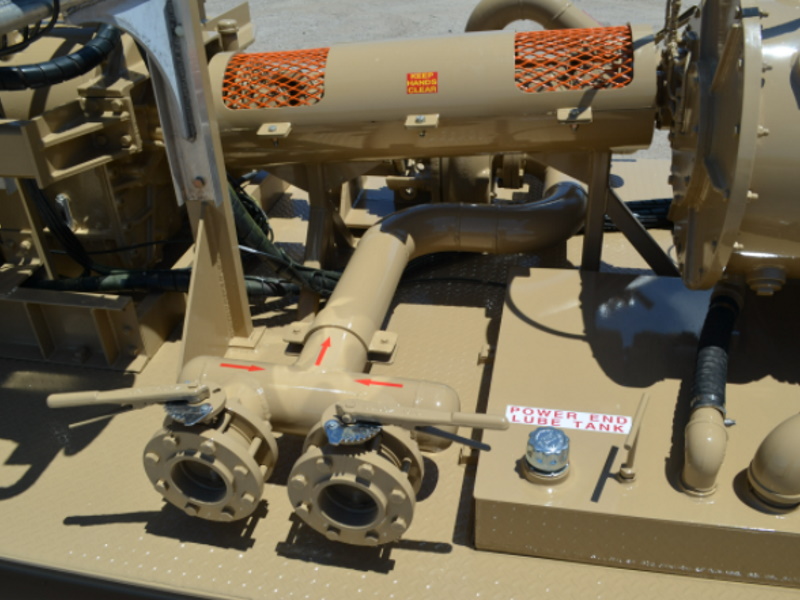

Power end lube oil pump driven from PTO mounted on Allison transmission
Plunger size is to be determined by customer

Digital display console containing digital indicators displays the pump pressure, pumping rate, and total volumes pumped. An electronic assembly is included which performs the necessary zero and scaling controls for each of the signals as well as the circuitry that formats the signals for computer inputs.
