2027 Dirt Dog PA8




Get in Touch
Description

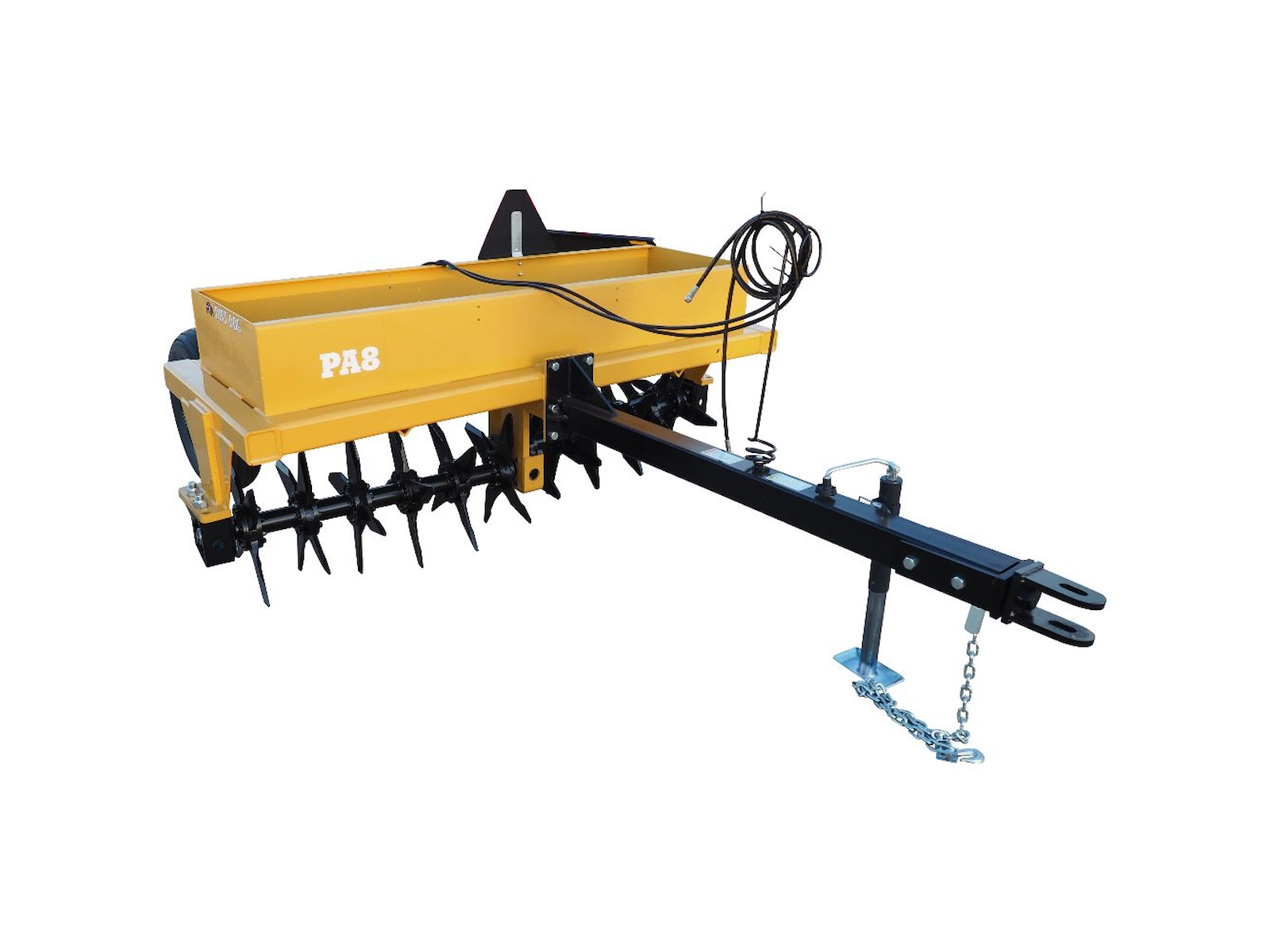

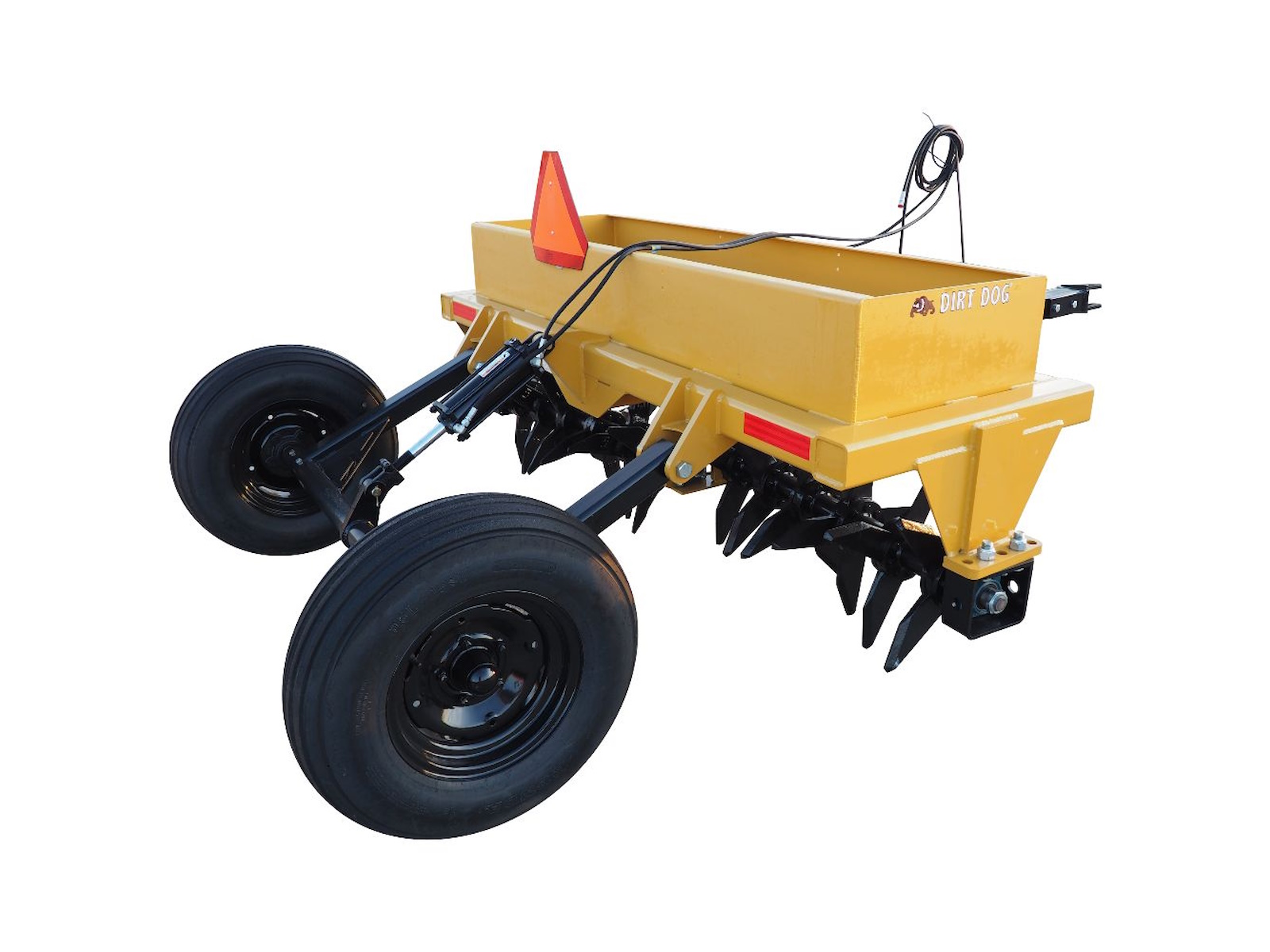

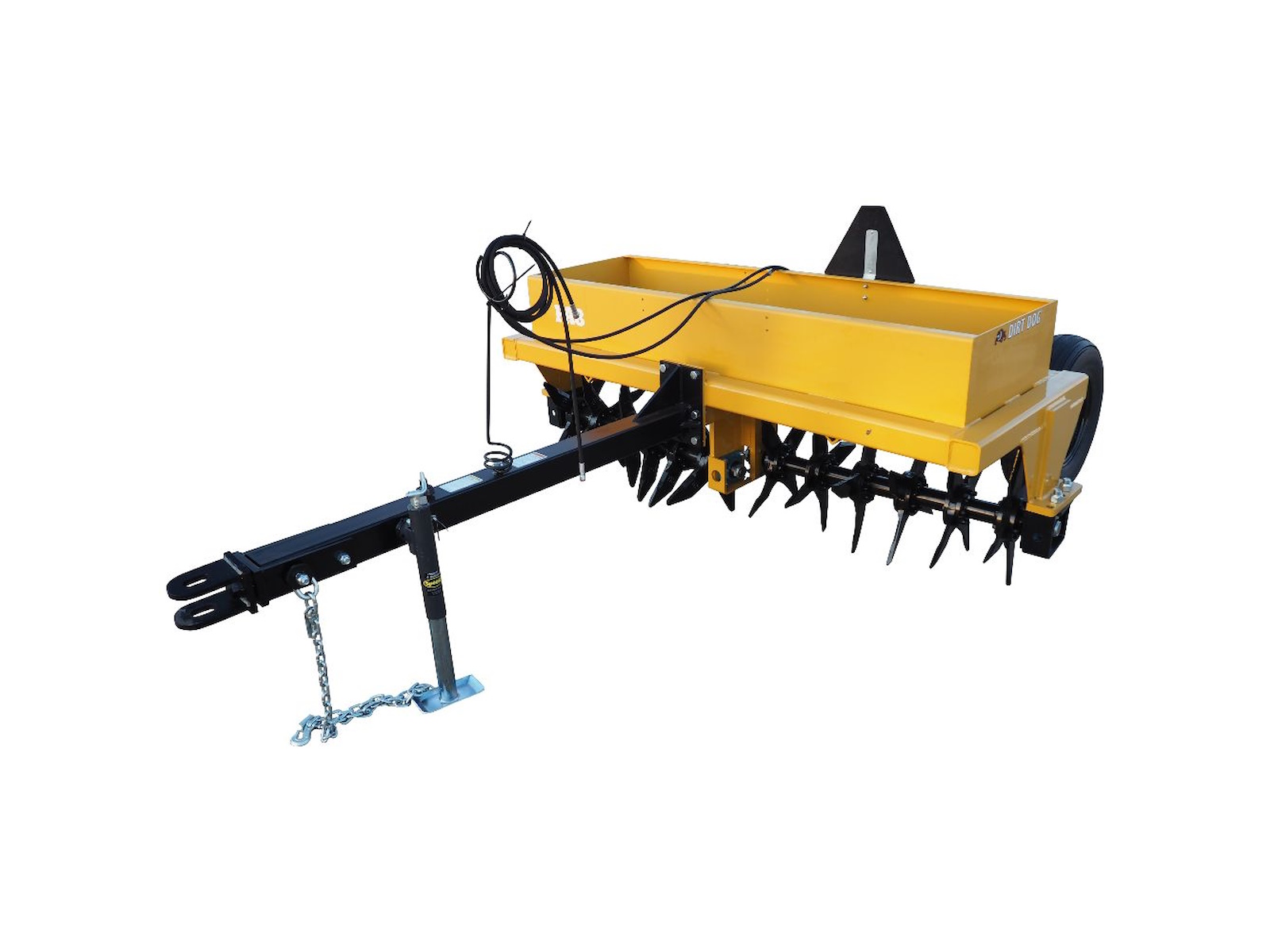

2027 Dirt Dog PA8
Aerators & Pluggers – Pasture Aerator
Dirt Dog’s PA Series pull-type Pasture Aerators are ideal in agricultural conservation tillage and pasture renovations. The heavy-duty, knife-like tines on the aerator are designed with a twist in them to break-up compacted soil horizontally and vertically as they slice into the ground in a twisting fashion. This breaking action conditions the soil to soak up run-off water faster, allow fertilizer to penetrate deeper into the ground, and increase oxygen and water supplies to the plant roots. The built-in, metal weight box allows you to add any type of weight to help the aerator tines penetrate into the ground and reach maximum depth.
Features may include:
- 4” x 4” x 5/16” frame construction
- Hydraulically adjustable transport wheels standard
- All metal weight box available

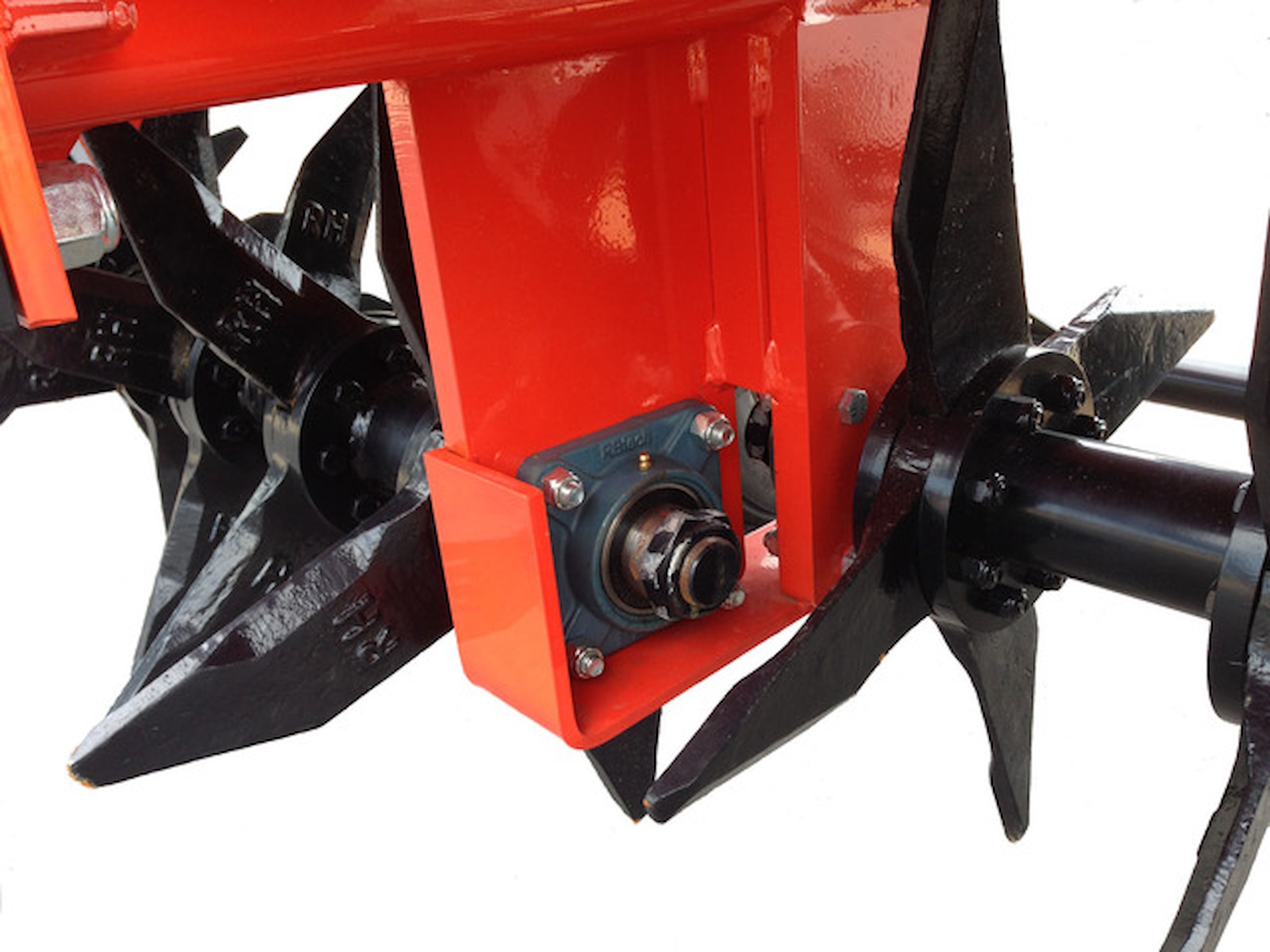

- Heavy duty grease able bearings
- Rotors can be adjusted from 2 1/2, 5 and 7 1/2 degrees
- Tines spaced 7 1/2″ apart
- Tines are designed with a twist to lift while fracturing the soil sideways
- Available in Yellow, Red, Orange, Green and Blue
Info
Industry
Agriculture
Make
Dirt Dog
Model
PA8
Trim
Base
Year
2027
MSRP
N/A
Category
Attachment / Implement
Subcategory
Aerators
Specs
Power/Horsepower
40-90 HP
Width
Overall: 97 3/8 in | Working: 86 in
Length
Overall (Wheels Down): 136 in
Height
Overall (with tines on the ground): 44 1/4 in
Weight
W/out added weight: 1950 lbs | Max Ballast in Weight Box: 2200 lbs
Notes
Number of Tines: 24 LH & 24 RH | Tine Material: Forged & heat treated steel | Tine Hub Spacing: 7 1/2 in | Tine Penetration: Up to 8.125 in depending on ground condition | Frame Construction: 4 in Sq. tubing all welded construction | Hitch Type: Heavy duty pull type with clevis hitch 1.25 in max pin dia | Main Tonque Beam: 4 in Sq. | Hitch Jack: 10 in top wind jack mounted to frame | Rotor/Tine Support Hangers: 1 in x 7 in heavy duty hangers | Rotor Bearings: Heavy duty greaseable bearings | Rotor Bearing Protection: 3/8 in x 3 1/2 in metal housing | Rotor Angle Adjustment: 2.5° 5°.7.5° | Tine Depth Control - DO NOT TURN W/TINES IN GROUND: Add cylinder donuts to cylinder rod- included | Hydraulic Cylinder: 3 1/2 in x 8 in ASAE tie rod | Transportation Lock: Manual cylinder lock | Rear Axle Pivot: Greaseable
Wheels
9 5L x 15 8 PLY RIB TL ROLLED RIM 5 ON 5.5 BHC
N/A N/A N/A N/A
