2025  JCB  505-20TC  - 20525

2025 JCB 505-20TC

505-20TC TELEHANDLER
Every JCB telehandler is designed to offer superb productivity, and the 505-20TC telehandler is no different.

Excellent visibility and maneuverability, versatile performance, potent power and innovation-driven efficiency are all part of the package.

ULTIMATE COMFORT

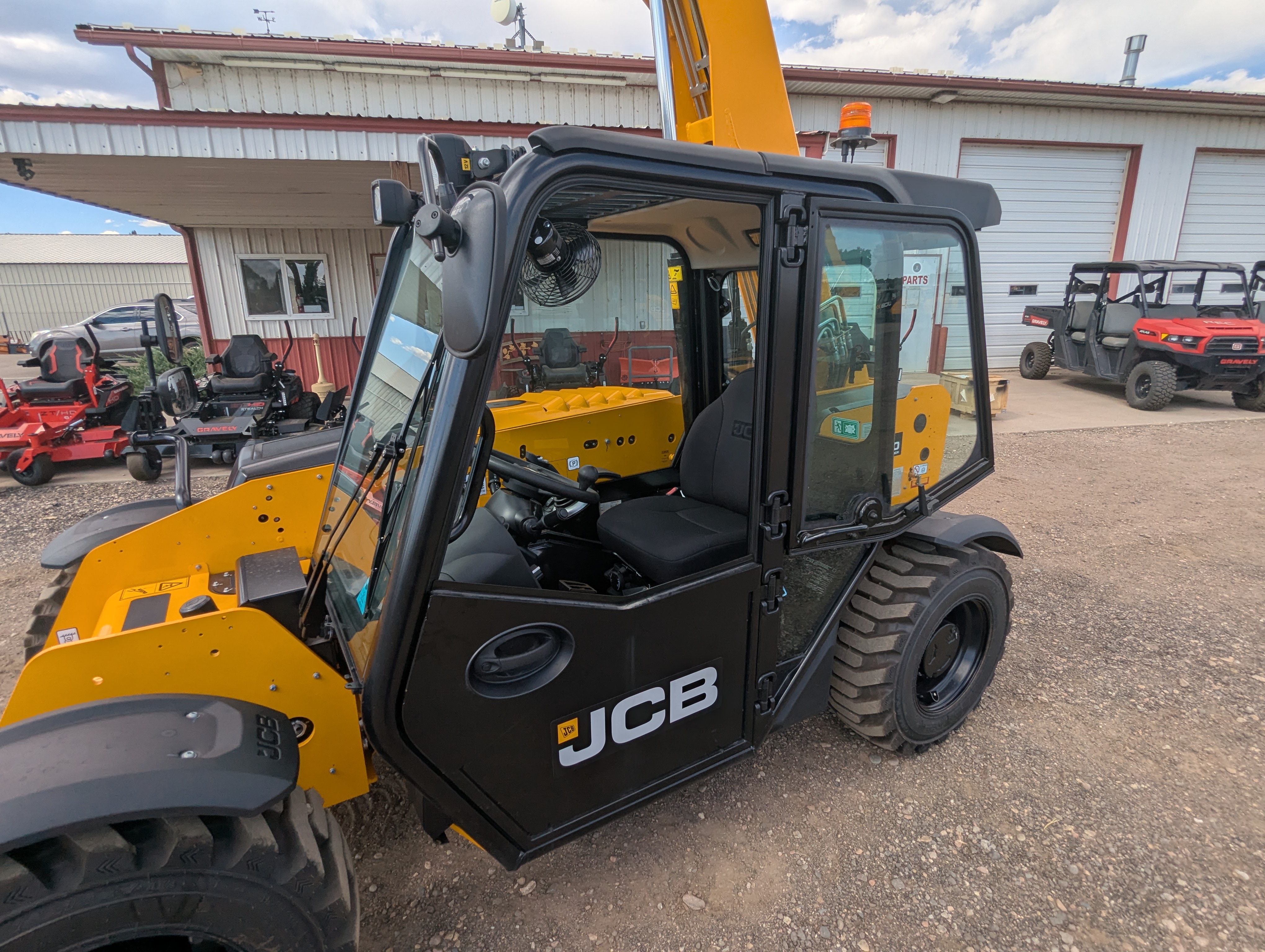

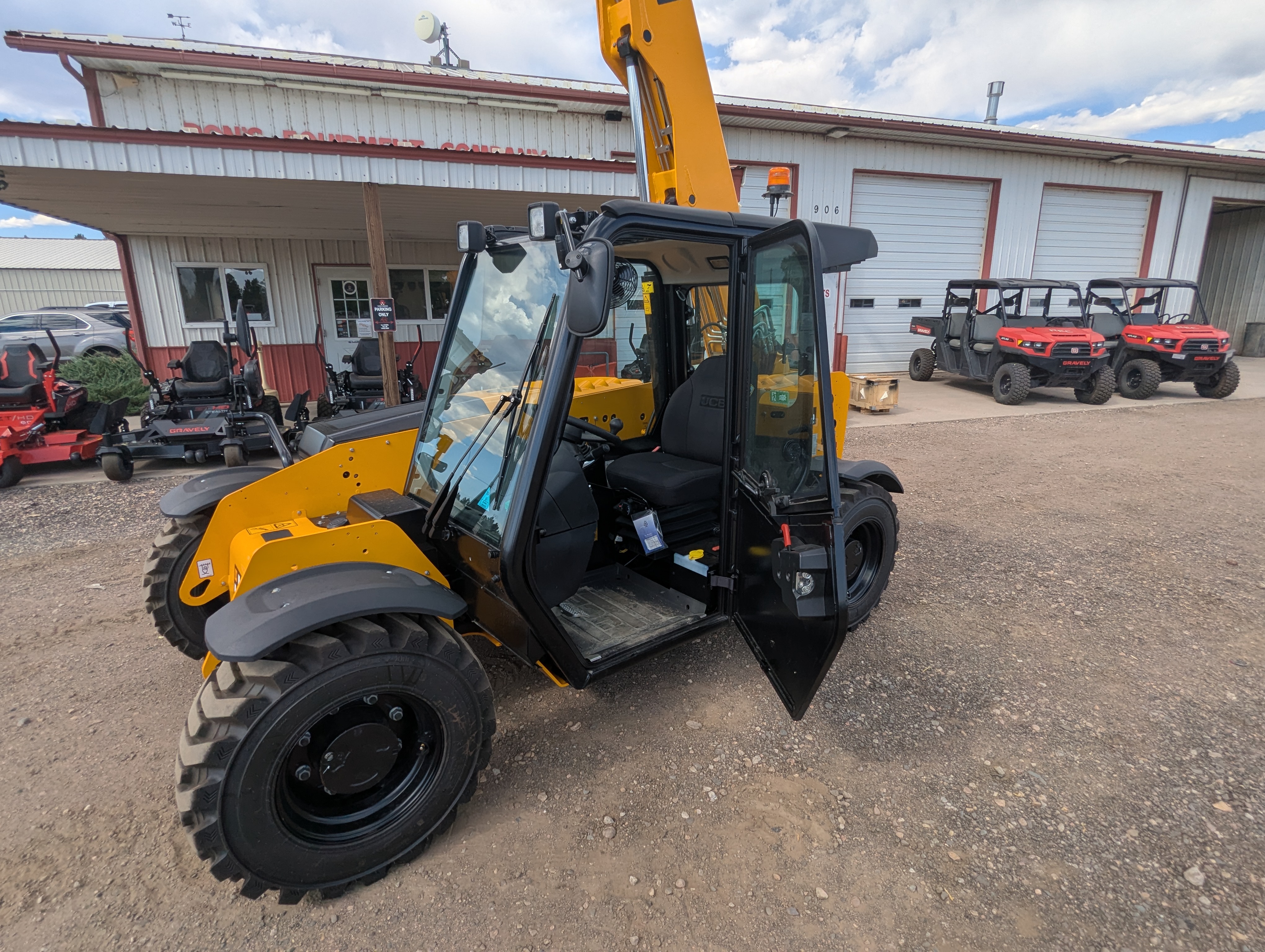

Despite the compact footprint, the JCB 505-20TC Loadall has a large, spacious cab with a wide access door.

• A full size cab ensures the operator benefits from a spacious working environment.
• Air conditioning is available for all cabs, ensuring maximum comfort throughout the day.

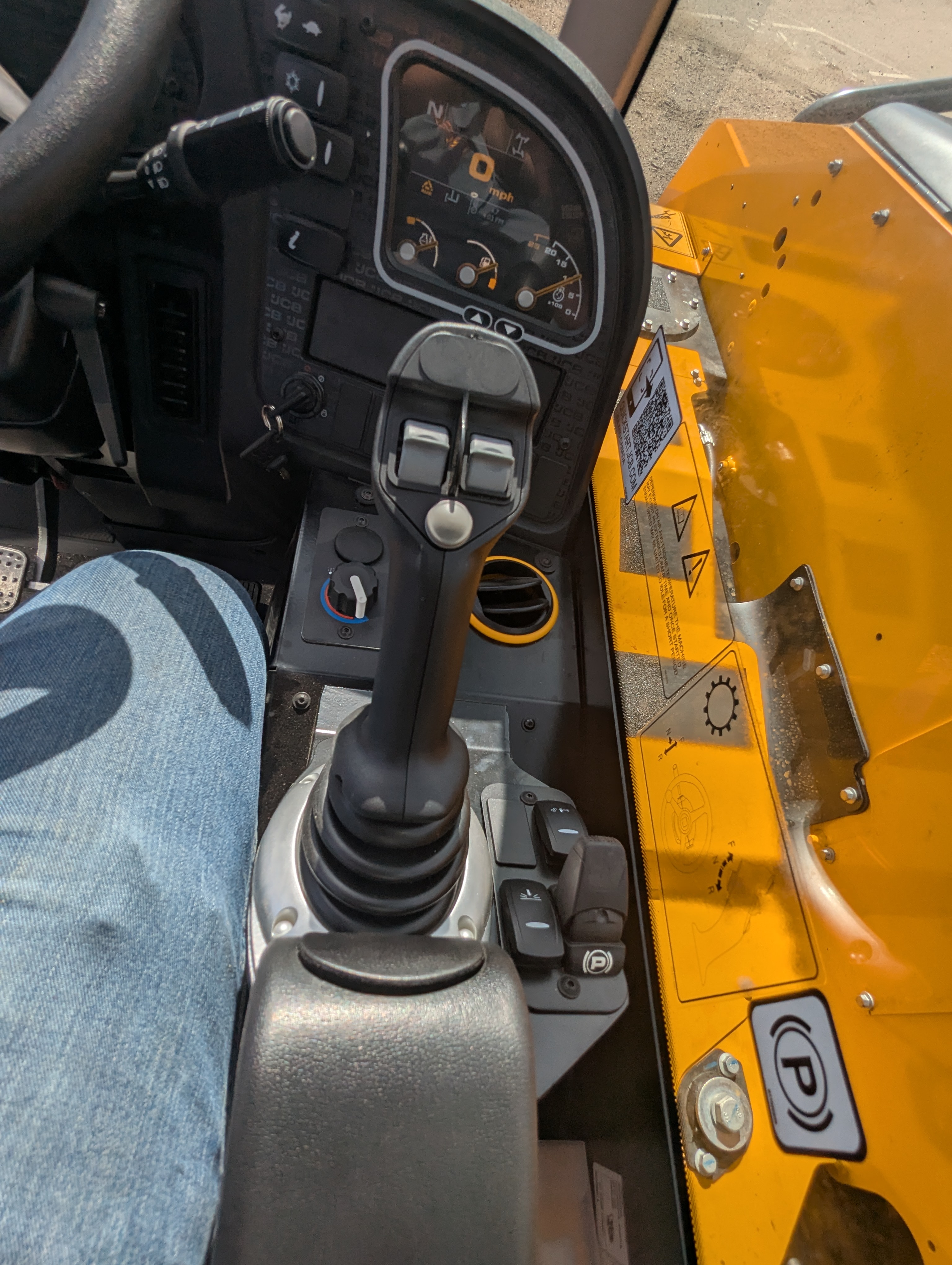

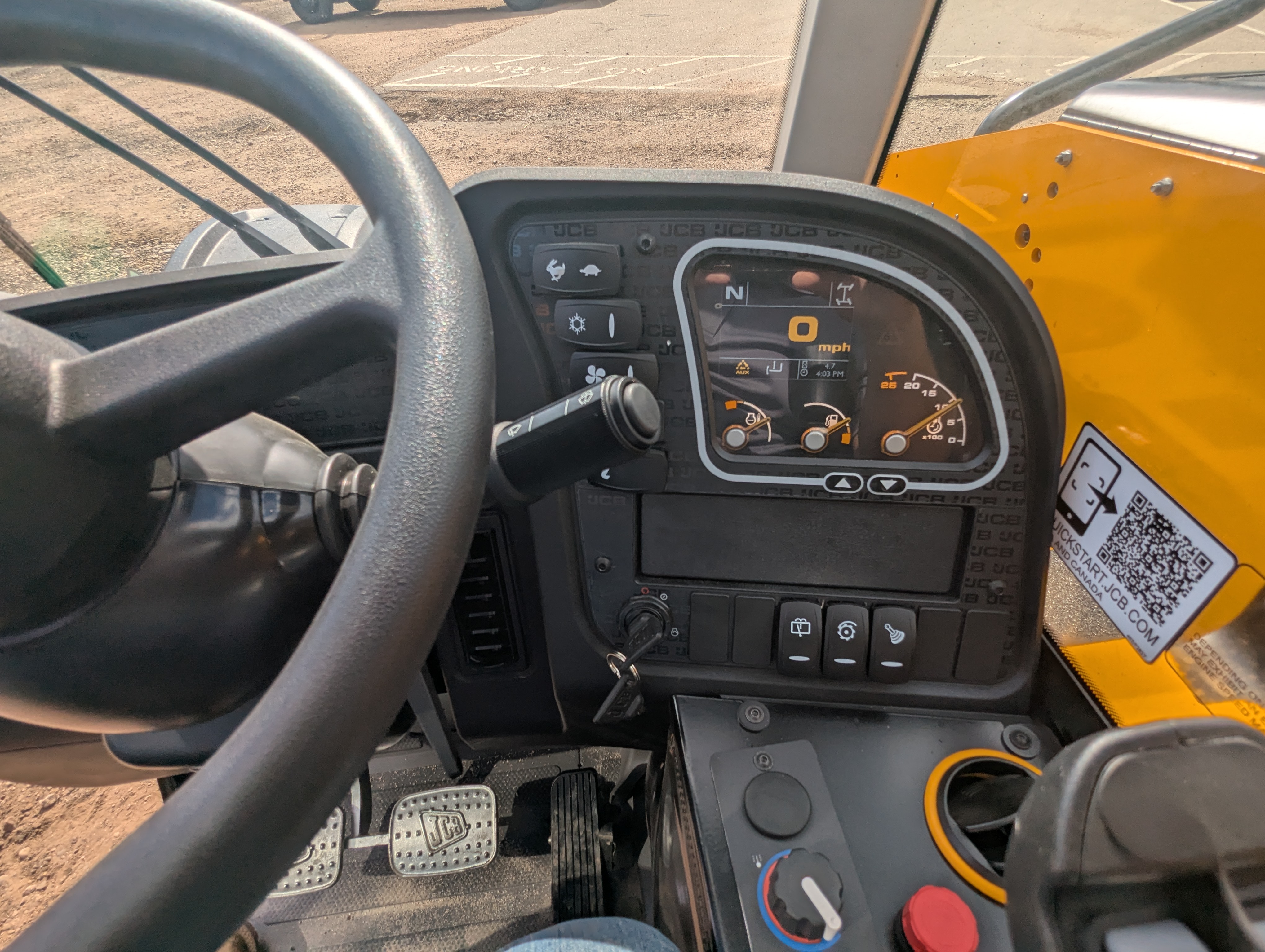

• Controlling a JCB 505-20TC is also comfortable, precise and smooth using single lever electro servo controls with proportional auxiliaries.

ULTIMATE EFFICIENCY

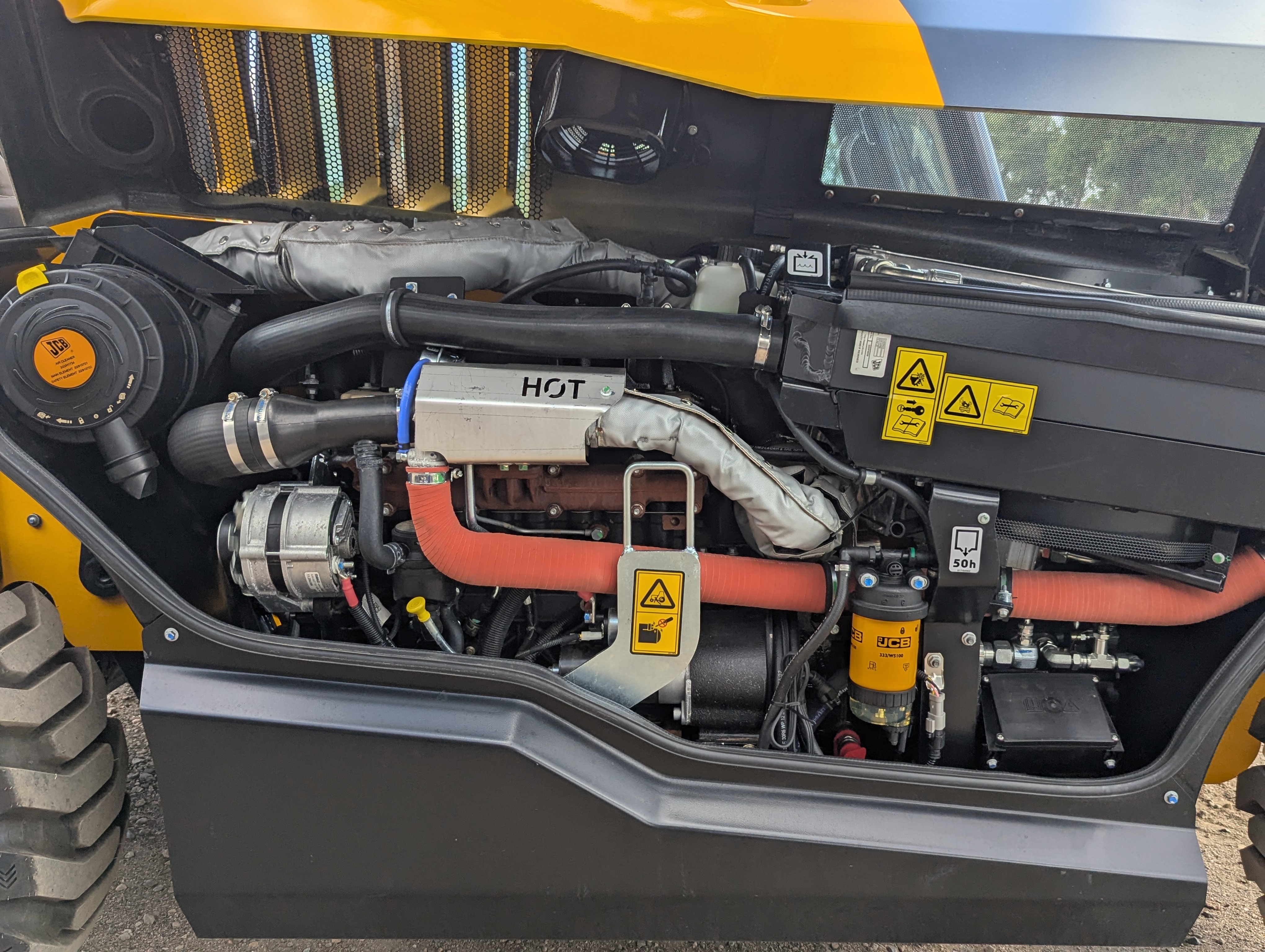

The 505-20TC Loadall is equipped with a potent JCB diesel by Kohler engine that produces 221 lb-ft of torque at just 1500rpm.

• Because it produces peak levels of torque at revs as low as 1500rpm, this engine can provide fuel-efficient matching of the transmission and hydraulics.
• For excellent traction and performance in difficult conditions, we’ve fitted the JCB 505-20TC telehandler with 4WD as standard.
• A limited-slip differential is available for maximum traction on slippery surfaces.

ULTIMATE PRODUCTIVITY
A low height of 6 feet 2 inches and a narrow width of 6 feet enables the 505-20TC to access the very smallest operating environments.

• 2-speed transmission allows you to select high and low speeds. The low speed setting complies with building site speed regulations, while high speed is ideal for roading.

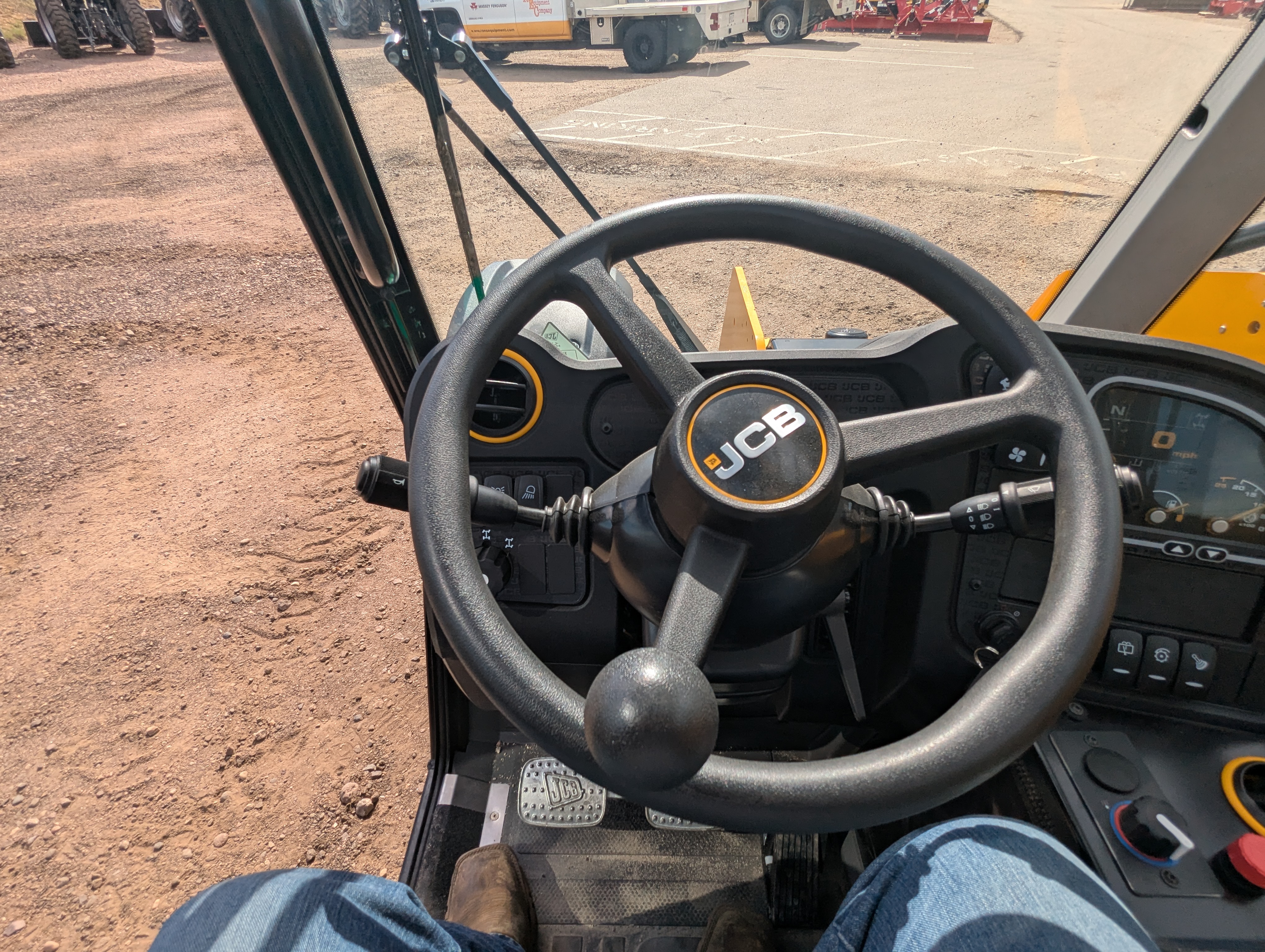

• Your telehandler operators can maneuver quickly and easily with directional shuttle changes possible via either the shuttle lever on the steering column or the joystick-mounted shuttle switch.

ULTIMATE SAFETY
On site safety is of paramount importance, so the 505-20TC has a wealth of features designed to protect itself, it's operators and any bystanders. It's also equipped with a comprehensive security package.

• JCB LiveLink now has the ability to monitor seatbelt usage, to ensure operators are safe when operating the machine.

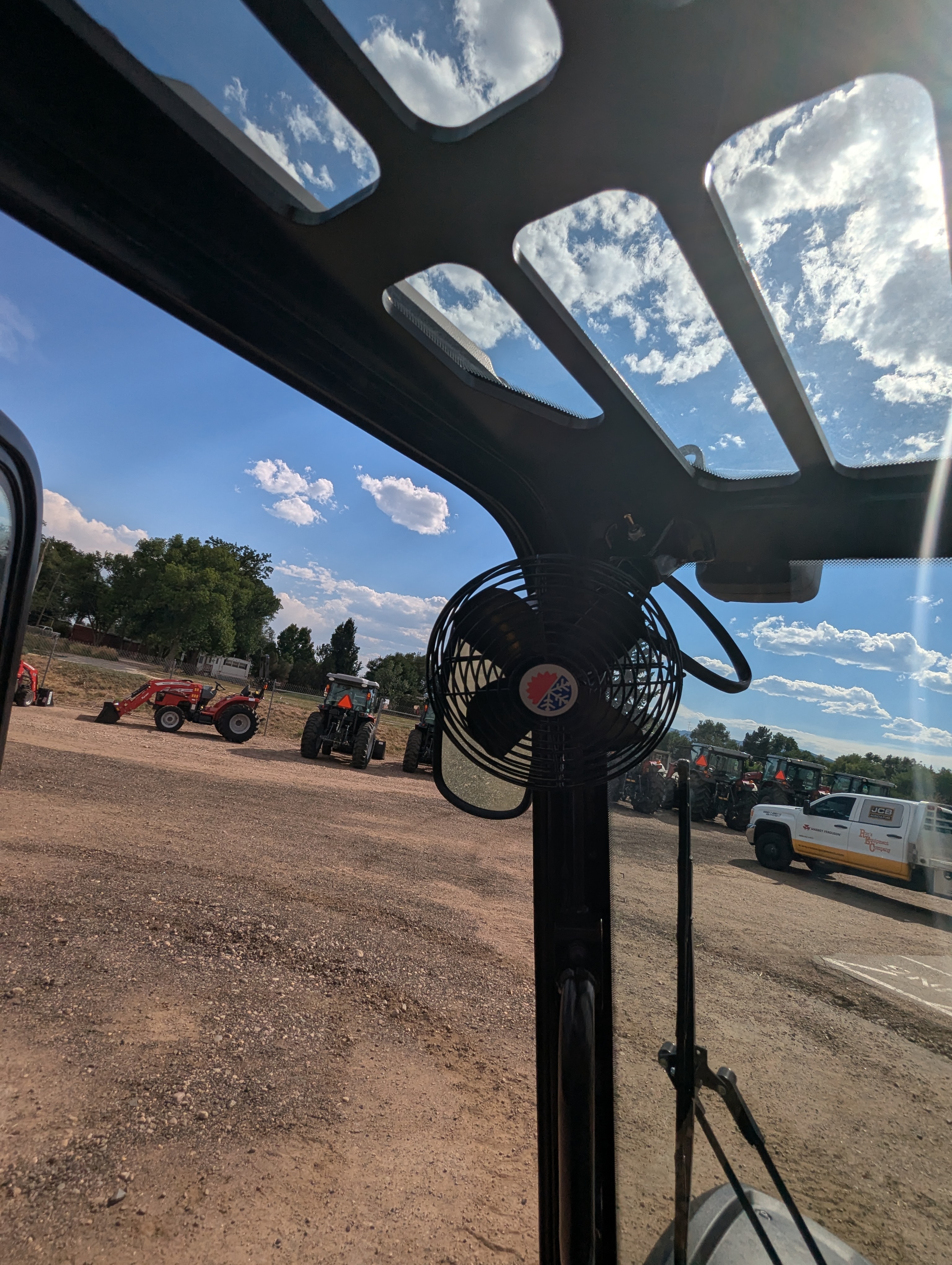

• All-round visibility is superb via the large roof screen, opening rear window and fold-back upper door.
• Hose burst check valves (HBCVs) help to protect the rams from collapse in the event of a hose failure.
